SX-DFS THEREFORE industrial fan

SX-DFS Technicalspecifications

Note: 1. Dimension: dimensions specified above are standards for goods in stock; customized products in other dimensions may be produced
uponrequirements.
2. Noise: the sound level meter is placed im away from the motor and the electromagnetic noise is lower than 60dB(A).
3. Effective area at the average air speed of more than 0.5m/s actually measured at open area.

SX-DFS Characteristics

SX-DFS series of fans adopt three-dimensional air supply technology, realize stepless speed regulation throughthe controller and stimulate natural air at the speed of 1 -3m/s which delivers the best feeling to people.High-performance, wing-imitating and hollow streamlined aluminum alloy blades characterized by low weightand high strength are adopted which can push a great deal of air to the ground. No matter in closed or open spaceoverall air circulation can be realized. Airflow can be strengthened so as to achieve the purpose of ventilation anacooling.

SX-DFS Application

SX-DFS series of industrial fans can be applied for machinery factories, vehicle repalr plants and other large size workshaps. With high ventilation efficiency and slow and stable air speed, they can make workers cool and comfortable, thus improvingworking efficiency; meanwhile, it can also improve the plant’s 6S management level. By contrast, traditional small fans have laae alr speed and alr pressure, People are ikelv to feel hot and drv and after ong time use, may have headache and chest distre ss, thus reducing production efficiency and leading to safety risks.in marketplaces, railway stations and other large buildinas, SX-DES series of industrial fans can promote air circwlation andimprove heat exchange efficiency of air-conditionings. lt is usually necessary to set the temperature of the air-conditioning atabout 26'c in hot summer davs if vou want to eniov the cool feeling; however, it is shown by various data that power saving by 20%can be achieved by increasing the temperature of the air-conditioning by 2'c, After instaling large fans, cool feeling can be created when the temperature of the air-conditioning is set at about 30'c. Therefore, energy saving can be achieved by more than 40% by using large fans and central air-conditioning together.Large logistics warehouses are usually configured for large industrial and mining enterprises and loaistics enterprises whichareusually installed with roof-tvoe ventilators or wall-mounting exhaust fans, Since convection from the air inlet to the air outlet isusually formed for air circulation, poor ventilation effect can be achieved for other places in the warehouse. SX-DFS series ofsuper largeindustrial fans can realize air circulation around the warehouse so that even air in the corner can be constantly updated, Besides, the constant air circulation can realize evaporation of water at the surface of substances, thus ensuring long-termmaterial storage in dry state without deterioration.

Energy-saving and Comfortable

Extensive application of $X-DFS is closely related to its characteristic of low energy-consumptionCompared with the ox horn head-shaking fan, each large fan of 1.5kw power can cover the space of 1000m2. However, the power of each ox horn head-shaking fan can only cover the area of 25-30m2. For 1000m2, it will need30-35 ox horn head-shaking fans, and it will consume electric power of 10-15kwh every hour. As for the largeceiling fan, it only consumes 1.5kwh, lt can save energy by 80%, and it can also greatly reduce the noise.Compared with the central air-conditioner, for 1000m2, it wil invest the equipment cost about RMB250000~400000, the power is about 90-100kw, Wit the energy saving ratio of 1.5: 90, it can really achieve saving energy, environmentalprotection and low carbon.If the fan is used together with the central air-conditioner, it can also save energy and improve the comfortablefeel. In the hot summer, it normally adiusts the temperature to be 23-25%c while turning on the air-conditioner.the temperature of the air-conditioner can be adiusted to be 26-28' while turning on the large celing fan, it cannot only achieve cool air, but also can save energy by 25% and reduce the disease related to the air-conditioner.

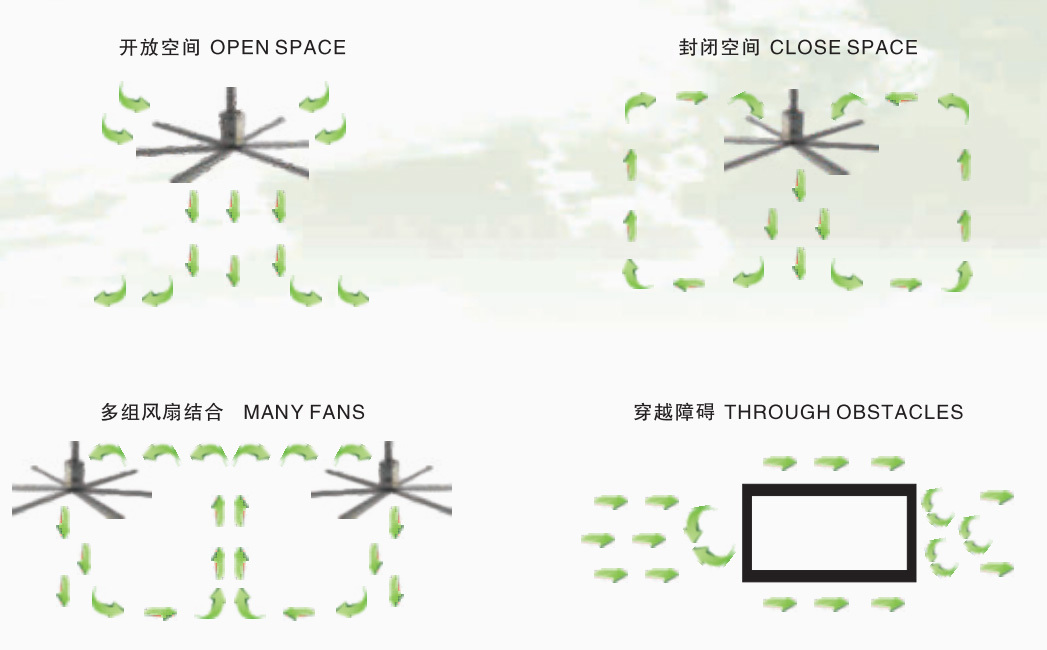

Airflow Schematic Diagram

Low energy-consumption of SX-DFS depends on the ultra-large fan blades that make the maximum diameter of the fancan reach 7.3m,Even at low revolution, it can also bring aboutstrong air flow movement, it can cover the ultra-large are upto 1000m2.lt can form circulatory flow indoor and achieve thepurpose of three-dimensional air blow, form the naturally optimal body feel wind speed of 1-3m/s.it can avoid the discomfort against the human body caused by the powerful blow ofthe traditional high revolution fan, and it can achieve healthwhile saving energy.

The product safety issue is very important. For the ultra-large body volume of $X-DFS fan, it shall take the following safeguard measures:

Our confidence toward the products comes from the quality. With the strict quality assurance managementand high-quality product part, the service life of the products can be guaranteed. The design life of SX-DFsfan is more than 15 years, which is more than 7 times of the life of the powerful industrial fan.

China Life Property & CasualtyInsurance Company limited has undertaken insurance for the quality of the product, and you use the product at ease.

China Life Property& Casualty Insurance Company limited has undertaken insurance for the quality of the fan.

Lnstalation Requirements

1.Architecture:Such structures as H-type steel,l-steel.reinforced concrete square beam and so on, and the maximum installation angle is 45°
2.The total building height shall be greater than 4.5m.
3.The minimum distance from the fan blade to the roofis0.8m.
4.The minimum safe distance from the blade to obstacleis 0.15m.
5.Input power supply:380V/220VFor different architectures, we will make relevant installation scheme and safeguard operation safetyof SX-DFS

Sanxin Company provides the followingguarantees:

Product design life of 15 years
Quality guarantee for the entire machine for 3 yearsAll-life maintenance

High-pressure Fogging System

High-pressure fogging system is one kind of equipmentintegratingcooling with humidifying functions and produced by the Company. Theprinciple is described as follows: the wateris pressurized with the high-pressure plunge pump, water mist is formed through the fogging nozzles distributing on the high-pressure pipeline, water mist is accelerated to vaporize with the air flow effect caused by SX-DFS fan, and these tiny water mist particles become vapor instantly and will not damage the indoor products and equipments. lt can achieve the cooling effect based on the principle that the vapor absorbs heat. With actual measurement,after $X-DFS is utilized together with the high-pressurefogging system, the cooling effect of the whole space can reach 3-8℃Machinery manufactures (such as for metalworking) are relatively sensitive to humidity of the operating environment. With the integratedcontrol of the fogging system and the fan system, the Company canreduce the damage against the metal surface to be the minimum.
